Automatic Steel Bar Induction Hot Forging Furnace

1. Intermediate frequency induction heating power supply, working table, induction coil, feed pusher, infrared thermometer, etc .;
2. Ultra-small size, movable, covering an area of only 0.6 square meters, easy to use with any equipment, installation, debugging and operation is very convenient, just learn it;

Automatic Steel Bar Induction Hot Forging Furnace

Application range

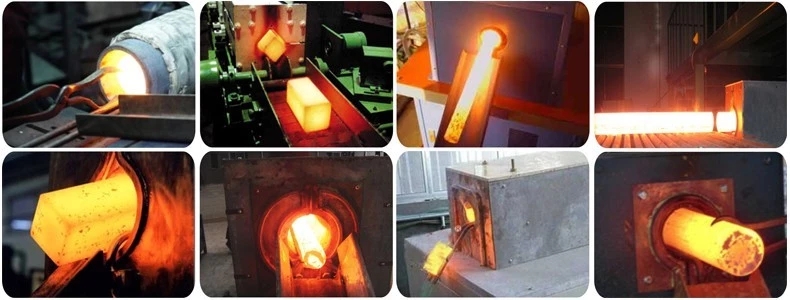

● Suitable for heat transmission of copper bar, iron bar, stainless steel bar and aluminum bar;

● Continuous heat transmission of round bar material, square material or other shapes of wool and other bad materials;

● The material can be heated integrally or locally, such as heating at the end and heating at the middle.

Automatic hot forging furnace parameters

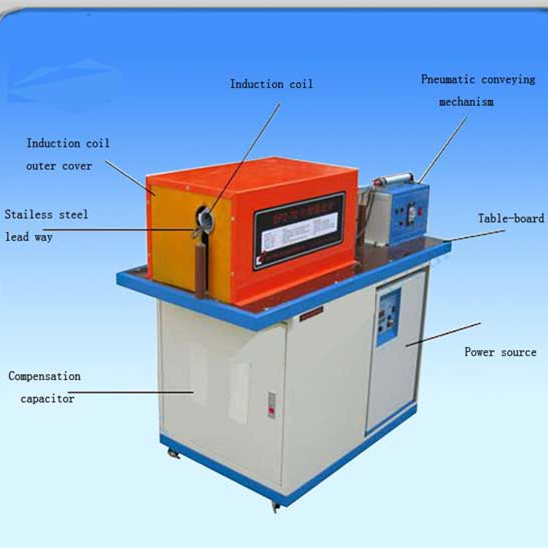

● Workbench + induction coil + pneumatic feeder + intermediate frequency heating power supply + compensation capacitor box;

● According to different application requirements, it may also include infrared thermometer, temperature controller and feeding, coiling and other devices;

● Can be customized according to your needs; equipment personalized customization-is the specialty of FENGTAI, is also the focus of FENGTAI's market business, 20 years of industry application experience, and has been * induction heating automation, we know more about induction heating process Can be tailored to your specific process needs * Provide suitable solutions, * Meet your needs.

Induction Hot Forging Machine.jpg

hot forging machine for bolts.jpg

hot forging for bolts .jpg

Models

Max Input Power

Heating ability of normal metals

Steel or S.S. to 1100℃

Brass or Copper to 700℃

DFTZ-35 Forging Furnace

35KW

1.4 Kg/min

Kg/min

DFTZ-45 Forging Furnace

45KW

1.8 Kg/min

2.55 Kg/min

DFTZ-70 Forging Furnace

70KW

2.85 Kg/min

4 Kg/min

DFTZ-90 Forging Furnace

90KW

3.64 Kg/min

5.1Kg/min

DFTZ -110 Forging Furnace

110KW

4.5 Kg/min

6.5 Kg/min

DFTZ -160 Forging Furnace

160KW

8Kg/min

11.5Kg/min

DFTZ -240 Forging Furnace

240KW

12Kg/min

17Kg/min

DFTZ -300 Forging Furnace

300KW

15Kg/min

21Kg/min

DFTZ -400 Forging Furnace

400KW

19Kg/min

26Kg/min

DFTZ -600 Forging Furnace

600KW

30Kg/min

42Kg/min


 Models Max. Power (KW)Heating capacity of common metal materials


Hot Forging

Furnace


Heating steel and stainless steel materials

to 1100 ℃

Heating brass materials to 700 ℃

DFTZ-25         25Suitable for ¢ 12-30mm bar heating
DFTZ-35         35Suitable for ¢ 12-30mm bar heating
DFTZ-45        45Suitable for ¢ 12-30mm bar heating
DFTZ-70        70Suitable for ¢ 15-50mm bar heating
DFTZ-90       90Suitable for ¢ 15-50mm bar heating
DFTZ-110      110Suitable for ¢ 15-50mm bar heating
DFTZ-160      160Suitable for ¢ 15-90mm bar heating
DFTZ-200      200Suitable for ¢ 15-90mm bar heating
DFTZ-250     250Suitable for ¢ 30-150mm bar heating

Advantages of hot forging furnace:

● Ultra-small size, movable, covering only 0.6 square meters.

● Convenient to use with any forging and rolling equipment and manipulator;

● It is very convenient to install, debug and operate.

● Can be heated to the required temperature in a very short time, greatly reducing metal oxidation, saving materials and improving forging quality;

● It can work uninterrupted for 24 hours, the heat penetration is even and better;

● Environmental protection, meeting environmental protection requirements, eliminating the trouble of environmental protection inspection;

● Power saving, compared with SCR medium frequency, not only small size, easy maintenance, but also 15-20% power saving.

● It is convenient to replace the furnace body to meet the different requirements of the overall heating of the bar or the heating of the end;

Certifications

Shenzhen Fengtai induction heating machine .jpg

FAQ

01.How to choose your models?

First to provide me the size, pictures and technology requirements. Our engineers with more than 12 years of experience will recommend you the suitable machine according to your workpiece. We provide detailed evaluation plans for free! (Add my WhatsApp: +8613113688127, talk now )

02.Can you produce according to the samples?

Yes, please send us your samples by express, we can evaluate by your samples or technical drawings. We can build the molds and fixtures. We provide Free test videos and reports to you,

03.How about your standard delivery date?

For small batch orders, we have storage delivery within three days. Large batch orders, delivery within 7-12 days, Our company provide just-in-time delivery.

04. Do you have CE, ISO9001 certificate?

Yes, we have.

05. Where is your factory?

Our factory located in Shenzhen city, next to HongKong, convenient in air, sea shipment.

06. If I buy the machine from you, how to install and operate?

our machines have manual and installation schematic diagram. If necessary, I can also send you to install video, we can also provide on-site installation services, but you need to pay the service fee,

07. Does it have the risk of being damaged during the delivery?

The machine is wrapped in the plastic film for waterproof, and then put in the standard wooden case for export with foam for shockproof, and nailed at last. It has little risk of being damaged.

08.What about your MOQ?

MOQ: 1 Set

09. Do you test all your goods before delivery?

Yes, we confirm a 100% test before delivery.
