Automatic induction heating furnace for hot forging

1. Intermediate frequency induction heating power supply, working table, induction coil, feed pusher, infrared thermometer, etc .;
2. Ultra-small size, movable, covering an area of only 0.6 square meters, easy to use with any equipment, installation, debugging and operation is very convenient, just learn it;

Automatic hot forging furnace parameters

s-induction heater for billets.jpg

● Workbench + induction coil + pneumatic feeder + intermediate frequency heating power supply + compensation capacitor box;

● According to different application requirements, it may also include infrared thermometer, temperature controller and feeding, coiling and other devices;

● Can be customized according to your needs; equipment personalized customization-is the specialty of FENGTAI, is also the focus of FENGTAI's market business, 20 years of industry application experience, and has been * induction heating automation, we know more about induction heating process Can be tailored to your specific process needs * Provide suitable solutions, * Meet your needs.

Main Applications:

MF induction forging machine is used for heating of bars and rods larger than Φ15mm or quadrate or other shape stuff in the shaping of screws, nuts, valves, locks and other metal parts, the material can be steel ,stainless steel, copper, brass, aluminum and so on, that used for whole heating, partial heating or middle part heating.

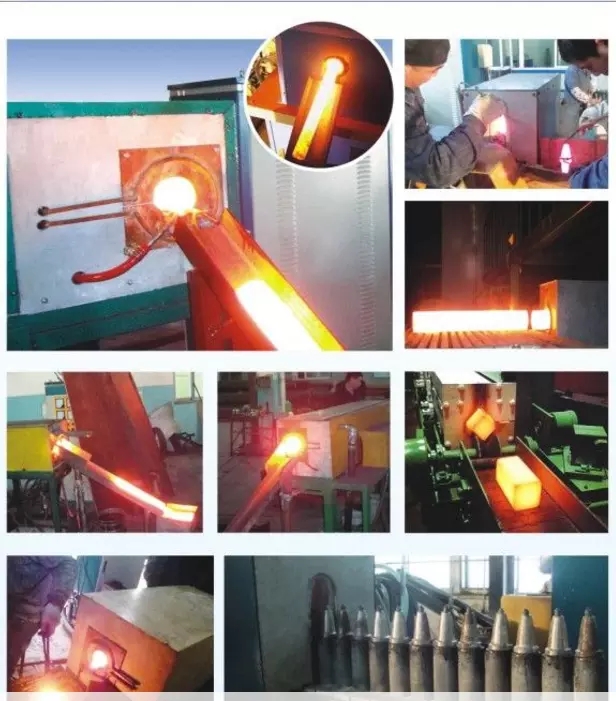

Typical applications:
Whole rod heating manual feed end heating,Auto-feed end heating ,end or middle part heating

induction heater for copper rods.jpginduction heating for bars.jpg

Heating Ability of Different Model

 Models Max. Power (KW)Heating capacity of common metal materials


Hot Forging

Furnace


Heating steel and stainless steel materials

to 1100 ℃

Heating brass materials to 700 ℃

DFTZ-25         25Suitable for ¢ 12-30mm bar heating
DFTZ-35         35Suitable for ¢ 12-30mm bar heating
DFTZ-45        45Suitable for ¢ 12-30mm bar heating
DFTZ-70        70Suitable for ¢ 15-50mm bar heating
DFTZ-90       90Suitable for ¢ 15-50mm bar heating
DFTZ-110      110Suitable for ¢ 15-50mm bar heating
DFTZ-160      160Suitable for ¢ 15-90mm bar heating
DFTZ-200      200Suitable for ¢ 15-90mm bar heating
DFTZ-250     250Suitable for ¢ 30-150mm bar heating

Advantages of hot forging furnace:

● Ultra-small size, movable, covering only 0.6 square meters.

● Convenient to use with any forging and rolling equipment and manipulator;

● It is very convenient to install, debug and operate.

● Can be heated to the required temperature in a very short time, greatly reducing metal oxidation, saving materials and improving forging quality;

● It can work uninterrupted for 24 hours, the heat penetration is even and better;

● Environmental protection, meeting environmental protection requirements, eliminating the trouble of environmental protection inspection;

● Power saving, compared with SCR medium frequency, not only small size, easy maintenance, but also 15-20% power saving.

● It is convenient to replace the furnace body to meet the different requirements of the overall heating of the bar or the heating of the end;

Certifications

Shenzhen Fengtai induction heating machine .jpg

FAQ

01.How to choose your models?

First to provide me the size, pictures and technology requirements. Our engineers with more than 12 years of experience will recommend you the suitable machine according to your workpiece. We provide detailed evaluation plans for free! (Add my WhatsApp: +8613113688127, talk now )

02.Can you produce according to the samples?

Yes, please send us your samples by express, we can evaluate by your samples or technical drawings. We can build the molds and fixtures. We provide Free test videos and reports to you,

03.How about your standard delivery date?

For small batch orders, we have storage delivery within three days. Large batch orders, delivery within 7-12 days, Our company provide just-in-time delivery.

04. Do you have CE, ISO9001 certificate?

Yes, we have.

05. Where is your factory?

Our factory located in Shenzhen city, next to HongKong, convenient in air, sea shipment.

06. If I buy the machine from you, how to install and operate?

our machines have manual and installation schematic diagram. If necessary, I can also send you to install video, we can also provide on-site installation services, but you need to pay the service fee,

07. Does it have the risk of being damaged during the delivery?

The machine is wrapped in the plastic film for waterproof, and then put in the standard wooden case for export with foam for shockproof, and nailed at last. It has little risk of being damaged.

08.What about your MOQ?

MOQ: 1 Set

09. Do you test all your goods before delivery?

Yes, we confirm a 100% test before delivery.
